Build Time: 20-min

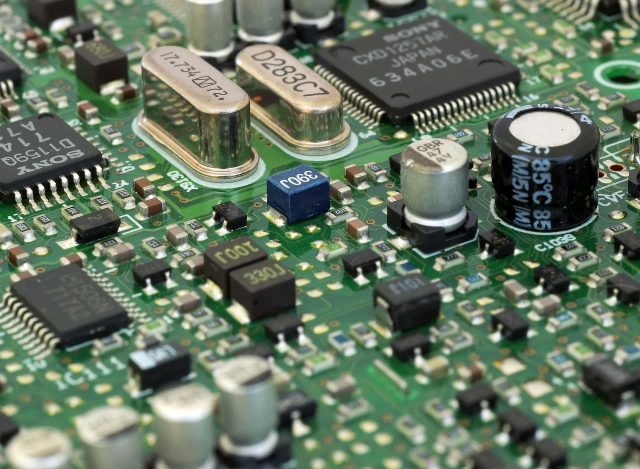

This PCB has SMD and Through hall components. SMD components are of different size and different package which was assembled using automatic Pick & Place machine.

Complete PCB assembly time is 20 min. including Through hall and Surface mount component assembly. Every PCBs are then passed through Ultrasonic cleaning process before final dispatch.
